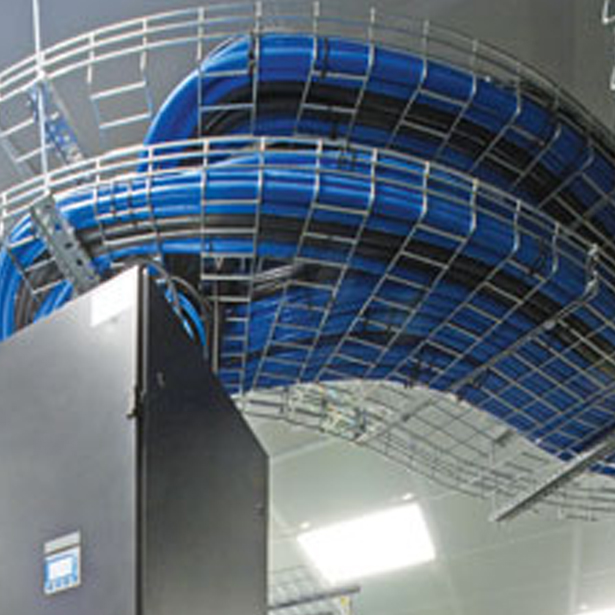

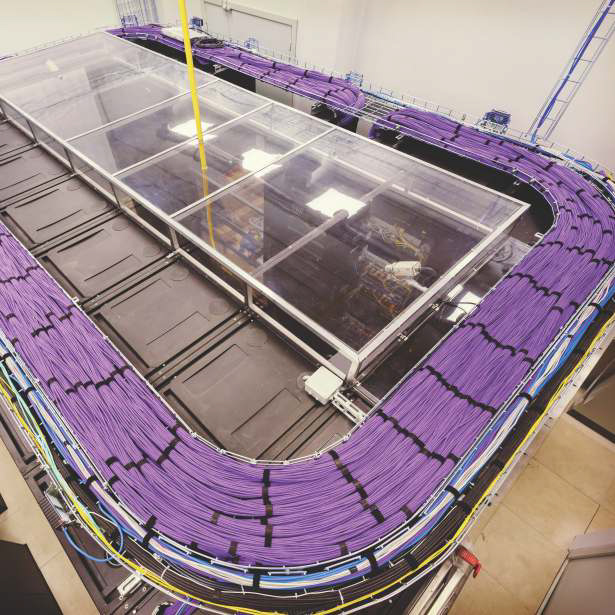

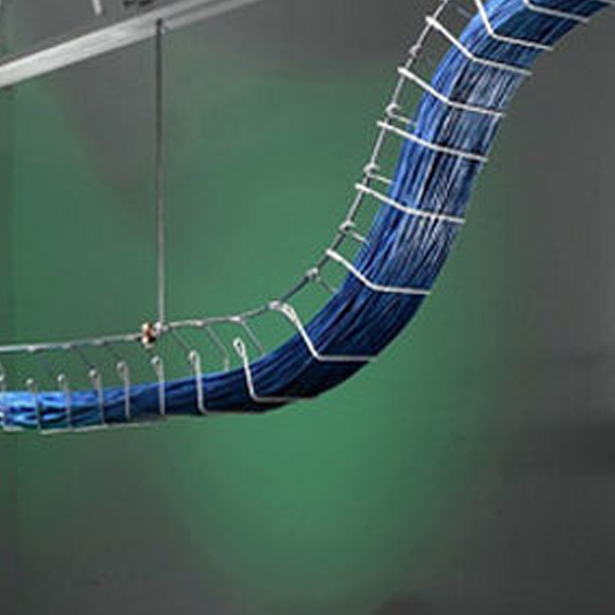

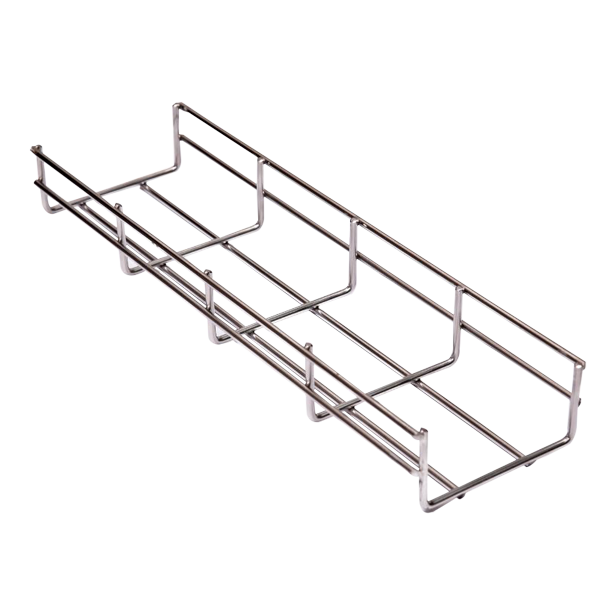

The second generation open type wire mesh cabletray designed by Swastik includes indoor & outdoor use widely used in installation cable in different telecommunication houses , electricity units and engineering project.

Feature : Easy to install , excellent cable ventilation, energy saving , easy for maintenance and update.

Material : Carbon steel , stainless steel ( 304 / 316/ 316L) Surface treatment : 3 finishes for carbon steel, Electrozinc ( EZ) for indoor use , hot dip galvanized ( GC) for outdoor use , also powder coated ( DC) ( Colours up to customer). Acid washing then polished for stainless steel.

Wire Mesh Cable Tray
Wire Mesh Cable Tray
Wire Mesh Cable Tray
Wire Mesh Cable Tray
Wire Mesh Cable Tray

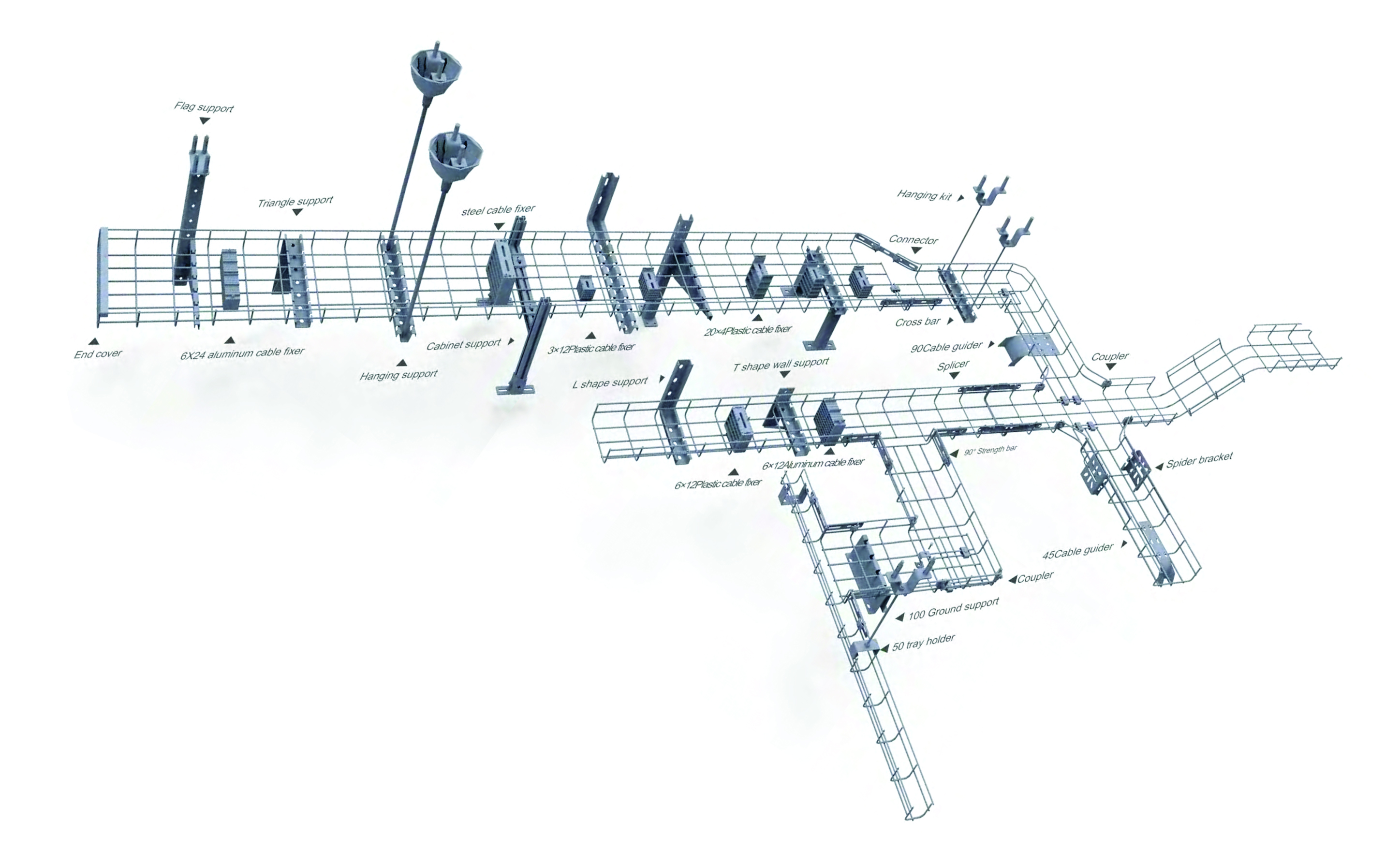

Accessories

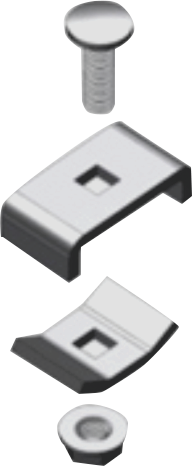

Coupler Kit
Coupler kit includes an out-coupler, an in-coupler, A M6X20 carriage bolt, and an M6 flange nut
  • Be used to all of straight section connection.
Moc SS 304/316
Finish Electropolished

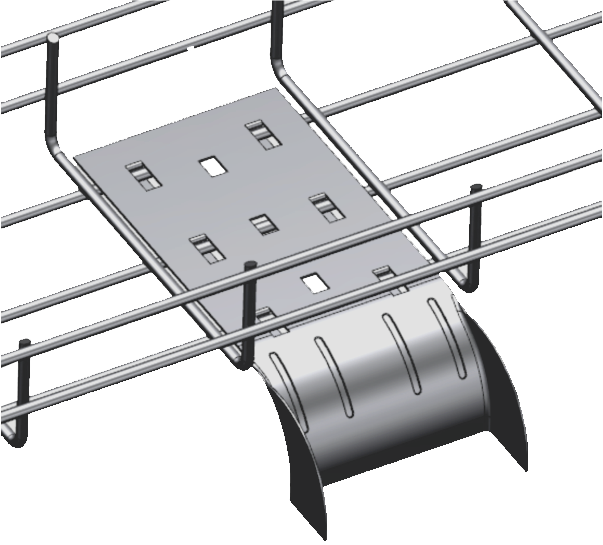

Cable Exit Clip
  • Can be in any position lead cable.
  • Support without screw, Fixed with bending protrusion.
Moc SS 304/316
Finish Electropolished

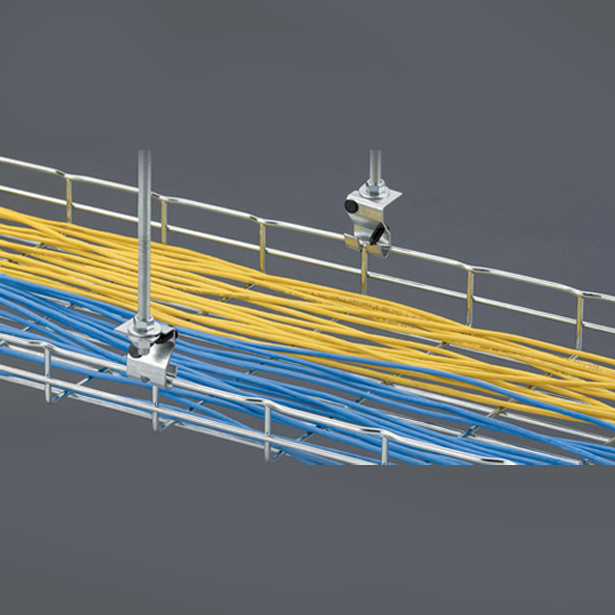

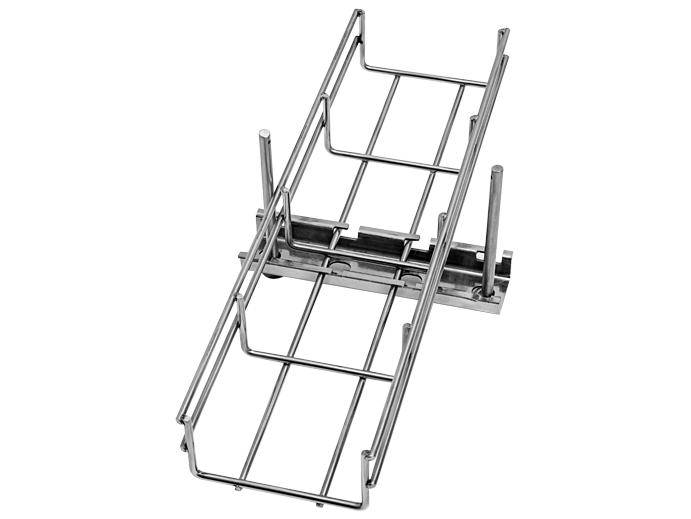

Ceiling Support
Fix the tray on the threaded rod with nuts hanging from the ceiling.
Matching length of trapeze with width of wire tray (L = W + 80).
  • Supporting strength is higher than T-trapeze
  • Fits max M10 threaded rod.
  • Support without screw, Fixed with bending prostrusion.
Moc SS 304/316
Finish Electropolished

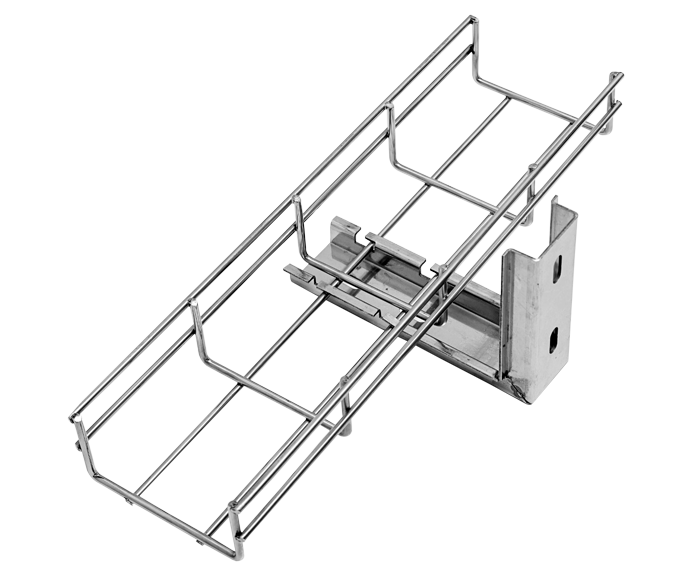

Wall Support
  • Used to mount to wall with expansion bolt.
  • Ensure the distance between the wall.
  • Can be use to construct multi-storey bridge.
  • Matching the arm-length with the width of the wire tray.
Moc SS 304/316
Finish Electropolished

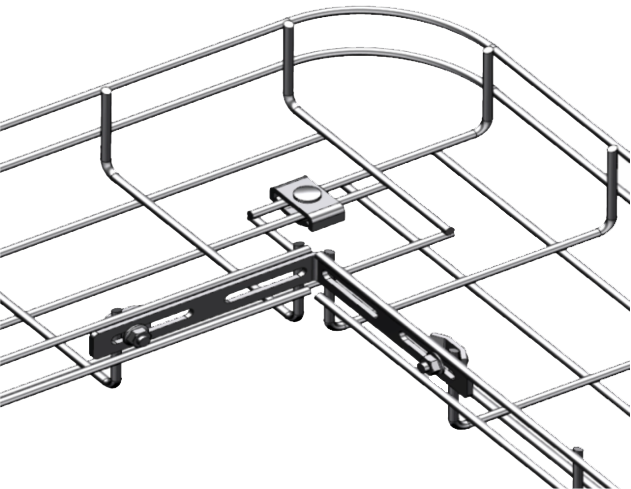

Horizontal Bend
Horizontal bend comes in two options one is welded other is screwed, Free from sharp edge and sturdy design, Quick to assemble and easy to disassemble
Moc SS 304/316
Finish Electropolished

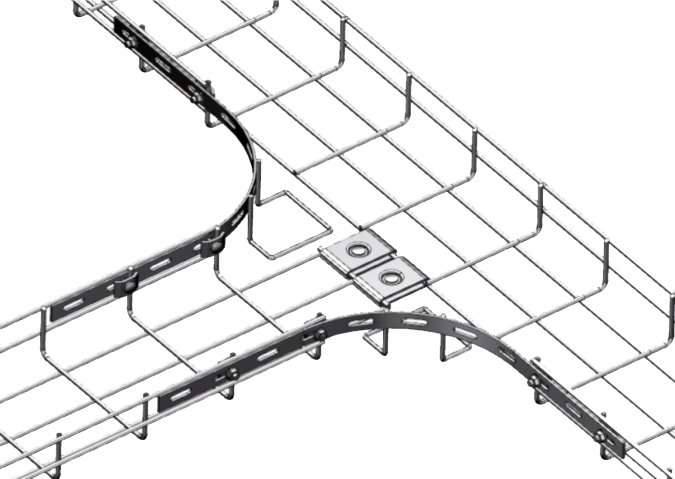

TEE
TEE comes in two options welded and screwed, Free from sharp edge and sturdy design, Quick to assemble and easy to disassemble
Moc SS 304/316
Finish Electropolished

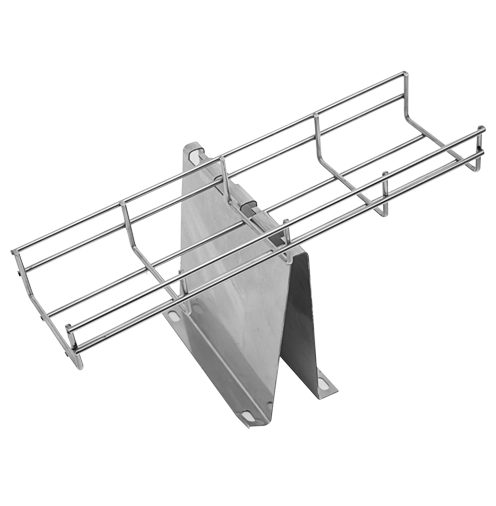

Floor Support
Can be directly fixed on the ground with screws
  • Support without screw, Fiexed with bending protrusion.
  • Range 63mm from the ground.
  • Type and width of wire tray matching.
Moc SS 304/316
Finish Electropolished

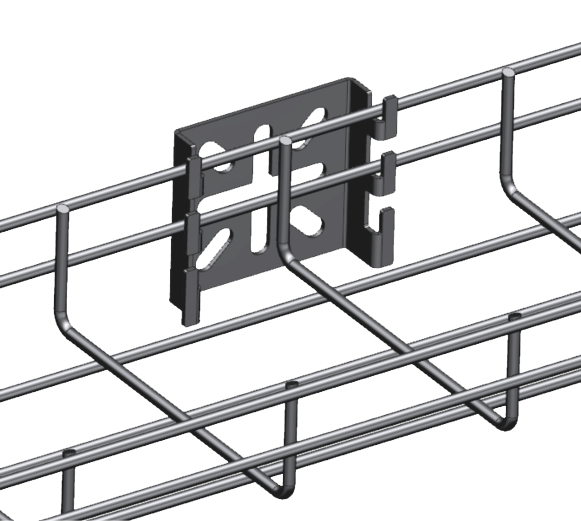

Spider Bracket
  • Provide a variety of screw position.
  • Expansion screws can be increased or decease according to the need
  • Applied to a variety of installation environment
  • Only needs 100mm installation space, and more suitable for small space.
Moc SS 304/316
Finish Electropolished

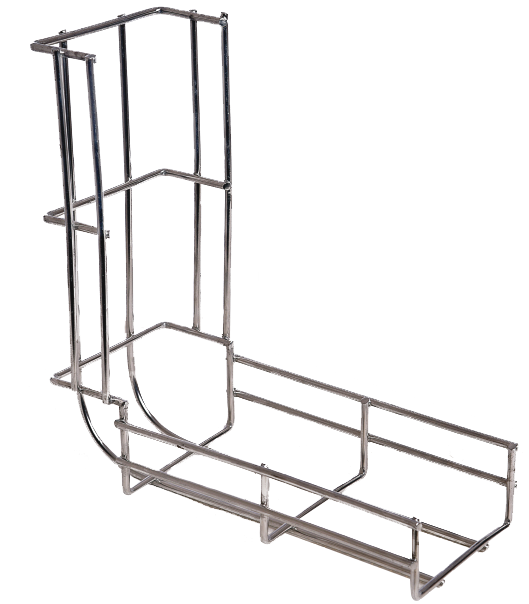

Vertical Bend Inward
  • Used to move cable tray upward or downward.
  • Bends without any coupler kit available
  • Smooth finish free from sharp edge
Moc SS 304/316
Finish Electropolished

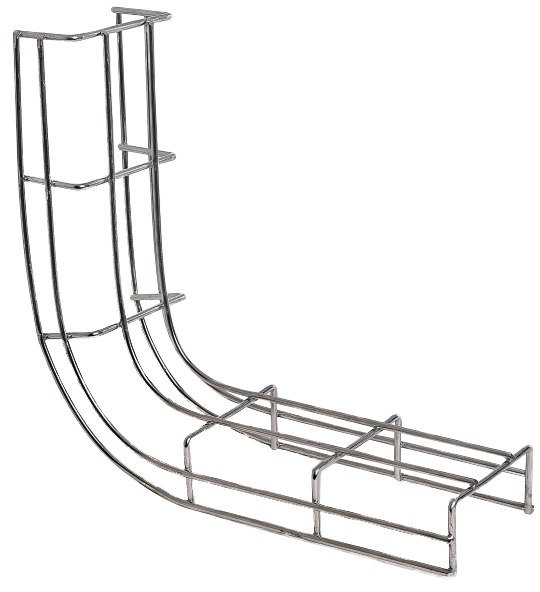

Vertical Bend Outward
  • Used to move cable tray upward or downward.
  • Bends without any coupler kit available
  • Smooth finish free from sharp edge
Moc SS 304/316
Finish Electropolished
