Drain Trap

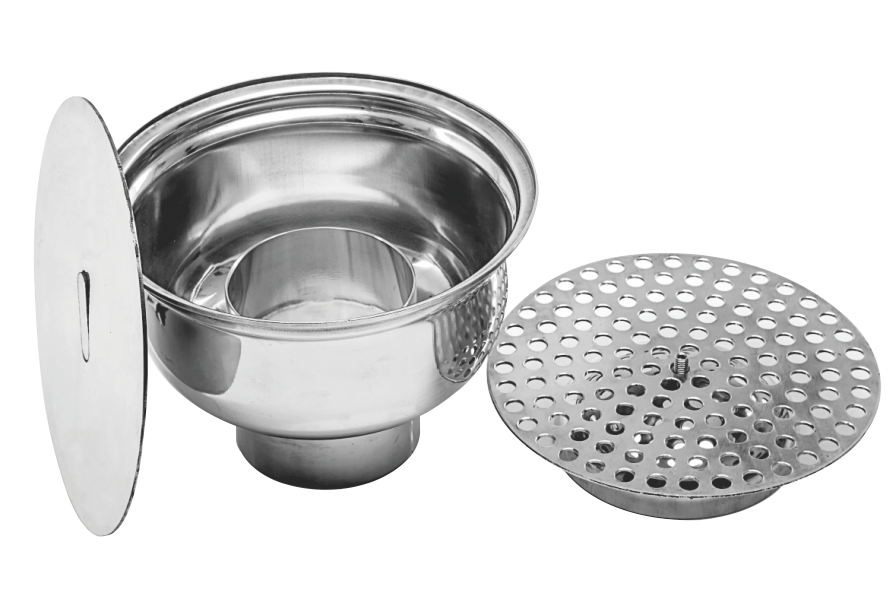

S S Drain Trap ( Round )
Key Features
- Hygenically designed main body
- Single seal design
- 10 mm holes provided for filteration
- Hygenic cover top plate provided
Benefits
- Single seal hygenic design to prevent bad odour and insects from drainage line
- Compact design to fit in Lesser depth areas
Application
Pharma ceutical, Chemical, Food & Beverages Clean Room, Bulk Drug Industries
Specification
- Size : 250mm, 180mm, Outlet - 100mm
- Finish : Matt / Mirror
- Moc : SS 304 / 316

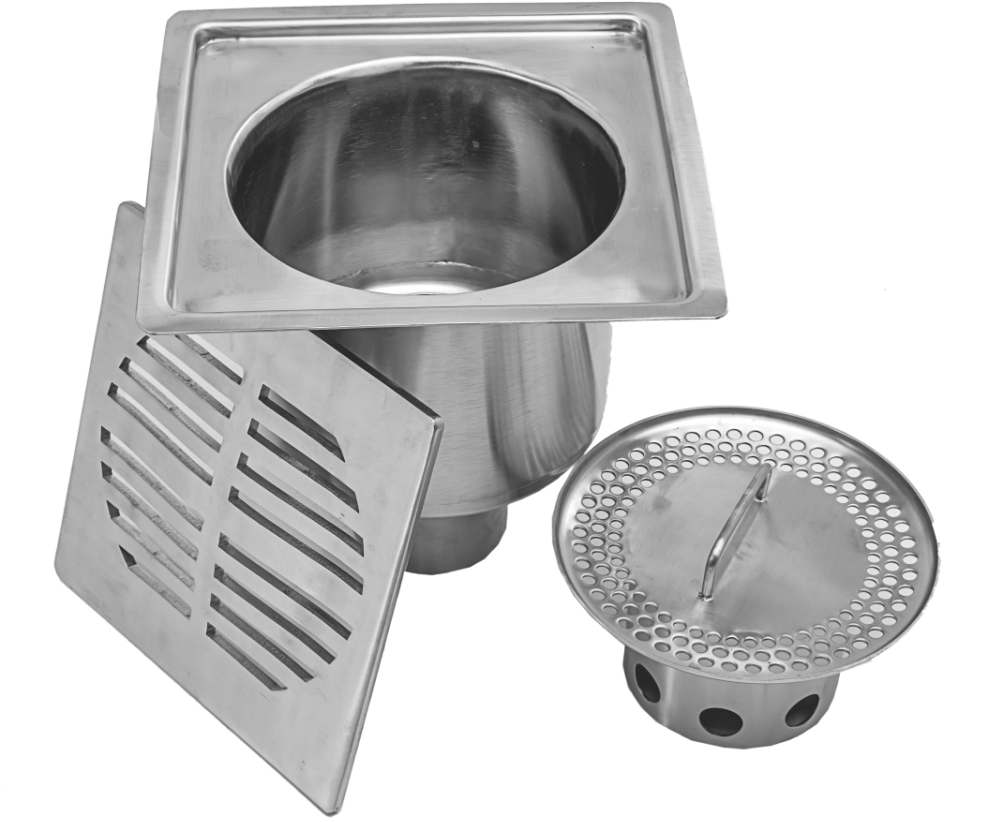

S S. Amul Drain Trap
Key Features
- Hygenically designed main body
- Top plate provided of 8 mm thick to withstand heavy load
- 10mm slots provided to filter large particle
- 8mm hole provided in stainer to filter small particles
- Single seal design in such way that certain amount of water remains in the trap to seal the outlet
Benefits
- Heavy design to without withstand heavy load
- Single seal hygenic design to prevent bad odour and insects from drainage line
Application
Dairy, Food & Beverages
Specification
- Size : 300 x 300 Top frame, Outlet 100mm
- Finish : Matt polish
- MOC : SS 304 / 316

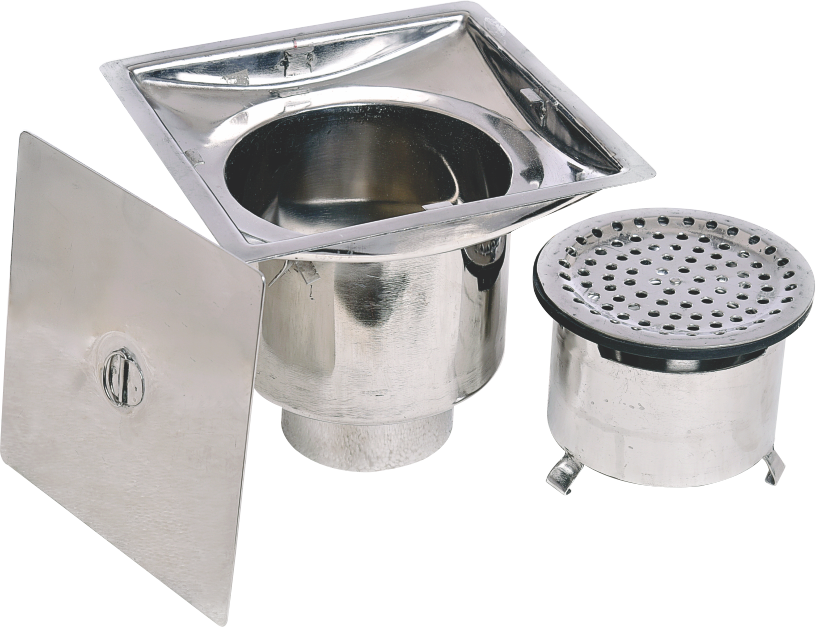

Double Seal Drain Trap
Key Features
- Trap dirt & solid particles Water Seal;
- Avoids ingress of gases, odour & insects
- Optional Outlets - Bottom or side to suit; site requirements
- Easy to clean
Application
Pharma ceutical, Chemical, Food & Beverages Clean Room, Bulk Drug Industries
Specification
- Size: Square 200mm x 200mm, 150mm x 150mm
- Outlet - 100mm
- Finish : Matt / Mirror
- MOC : SS 304 / 316
